Equipment for FRP Pipes
Production Line Configurations

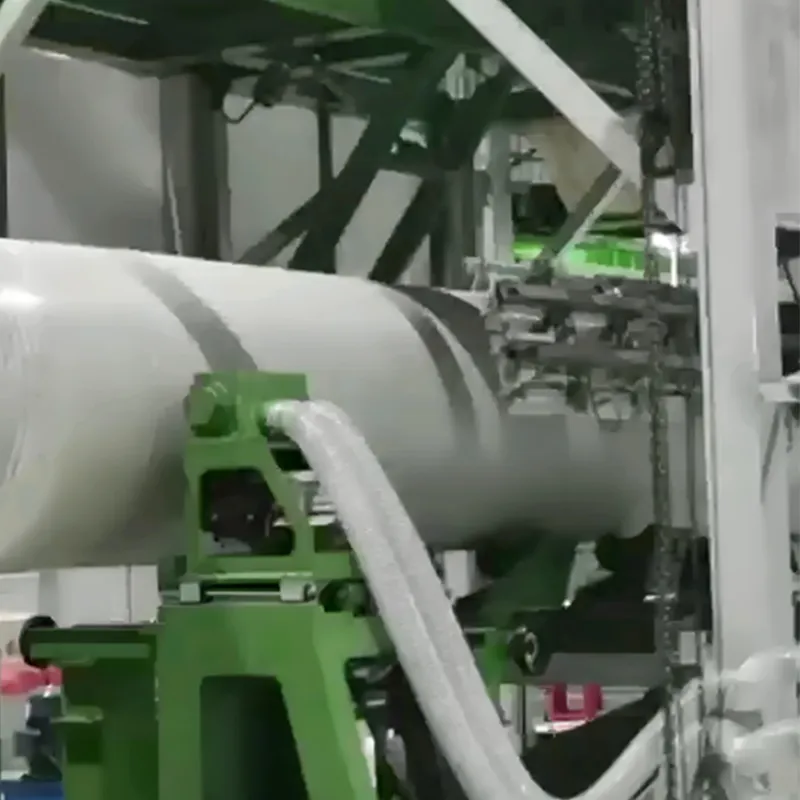

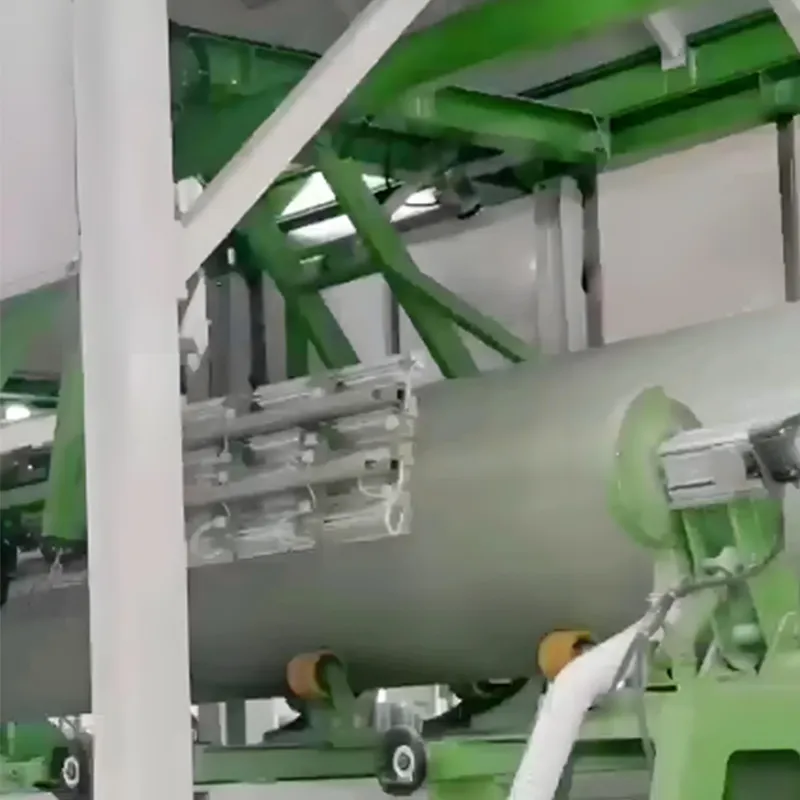

1. Filament Winding Line (CW)
Winding Patterns: Helical/circumferential/planar (0°-90° adjustable)
Mandrel System: 6-24m steel mandrels with temperature control (RT-150°C)
Resin Application: Computer-controlled dip bath or direct injection
2. Centrifugal Casting Line (CC)
Rotational Speed: 200-1,200 RPM (variable frequency control)
Curing System: IR pre-curing + microwave final curing
Liner Options: C-glass veil or PVDF film for enhanced corrosion barrier
Technical Specifications
Parameter | Filament Winding Line | Centrifugal Casting Line |
Pipe Diameter | 100-3,000mm | 50-4,000mm |
Wall Thickness | 3-50mm | 5-100mm |
Production Speed | 0.3-2m/min | 0.5-3m/hour |
Pressure Rating | PN6-PN25 | PN10-PN40 |
Stiffness | 5,000-25,000 N/m² | 10,000-50,000 N/m² |
Key Technological Advantages
✔ Multi-Axis Winding: 6-axis CNC control for complex layup (±0.1° accuracy)
✔ Smart Resin Management: Viscosity-controlled dosing with ≤2% variation
✔ Quality Assurance:
Online ultrasonic thickness monitoring
Automated holiday detection (9kV/mm)
Material Performance Comparison
Property | FRP Pipe | Steel Pipe | HDPE Pipe |
Corrosion Resistance | Excellent (pH 0-14) | Requires lining | Limited (pH 2-12) |
Weight | 1/4 of steel | Heavy | Lightweight |
Life Cycle Cost | 60% lower over 20 years | High maintenance | Moderate |
Thermal Conductivity | 0.3 W/mK | 45 W/mK | 0.4 W/mK |
Automation Features
Mandrel Handling: Automated loading/unloading with 10-ton capacity
Cutting System: Diamond-tipped saw (±0.5mm length tolerance)
IoT Integration: Predictive maintenance for resin pumps and mandrel bearings
Certifications: ASME RTP-1, ISO 14692, AWWA C950
Industry Applications
◼ Chemical Processing: HCl/H2SO4 transport (0.5mm corrosion liner)
◼ Oil & Gas: Produced water lines (API 15HR compliant)
◼ Desalination: Seawater intake pipes (anti-biofouling additives)
◼ Power Plants: FGD scrubber ducts (180°C continuous service)
Lead Time: 120 days for standard lines, 150-180 days for dual-process systems
Equipment for FRP Pipes Customer Evaluation
Equipment for FRP Pipes FAQ
-
What equipment is used for FRP pipe production?
FRP pipe production typically uses pultrusion machines, filament winding machines, curing ovens, cutting and finishing tools, and inspection systems to produce high-quality composite pipes.
-
What are the advantages of using specialized FRP pipe equipment?
The equipment ensures consistent pipe dimensions, high structural strength, corrosion resistance, efficient resin use, and reduced production defects.
-
What industries use FRP pipes?
FRP pipes are widely used in chemical processing, water treatment, sewage systems, power plants, offshore and marine industries, and industrial fluid transport.
-
Can the equipment produce pipes of different sizes and specifications?
Yes, modern FRP pipe equipment is adjustable for various diameters, wall thicknesses, and resin/fiber ratios to meet different project requirements.
