No Power Roof Fan
1.Product Overview

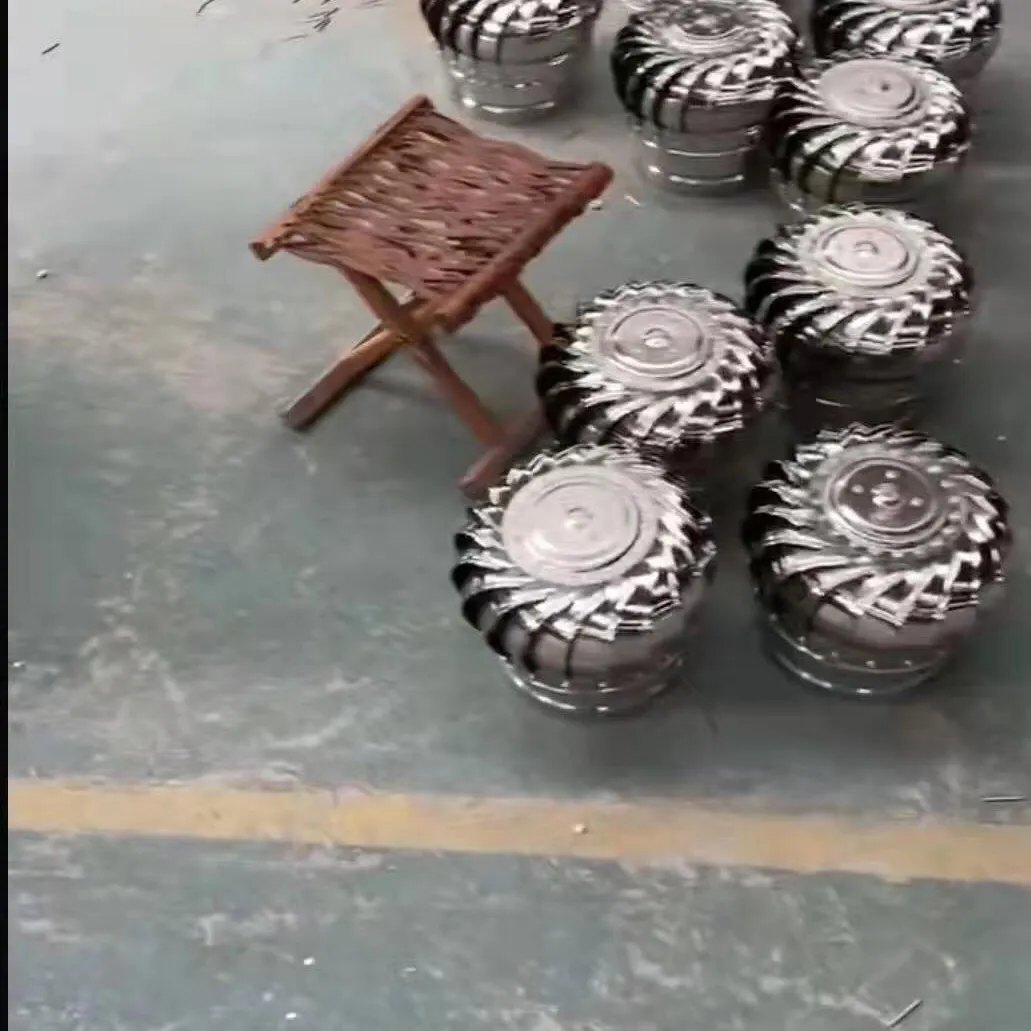

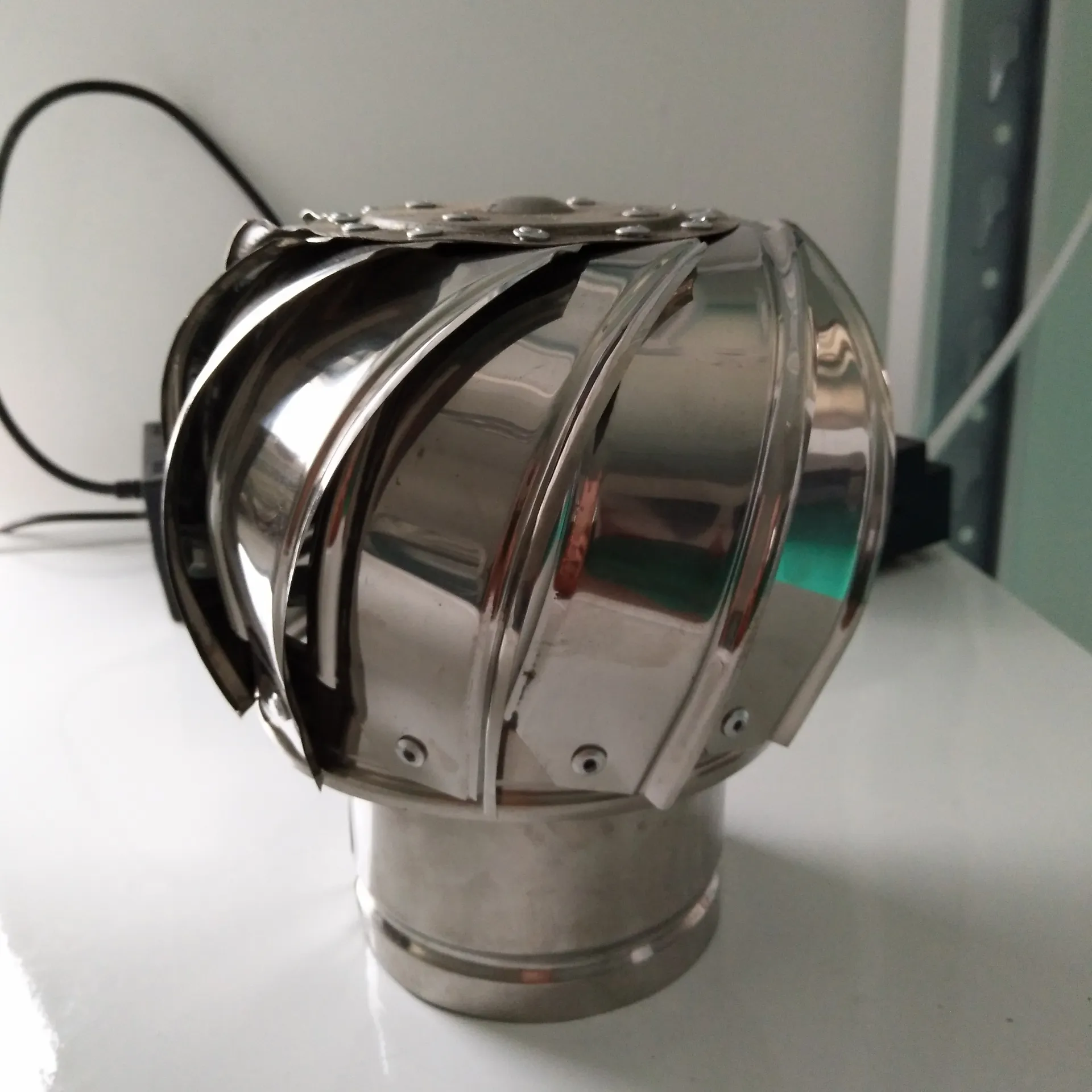

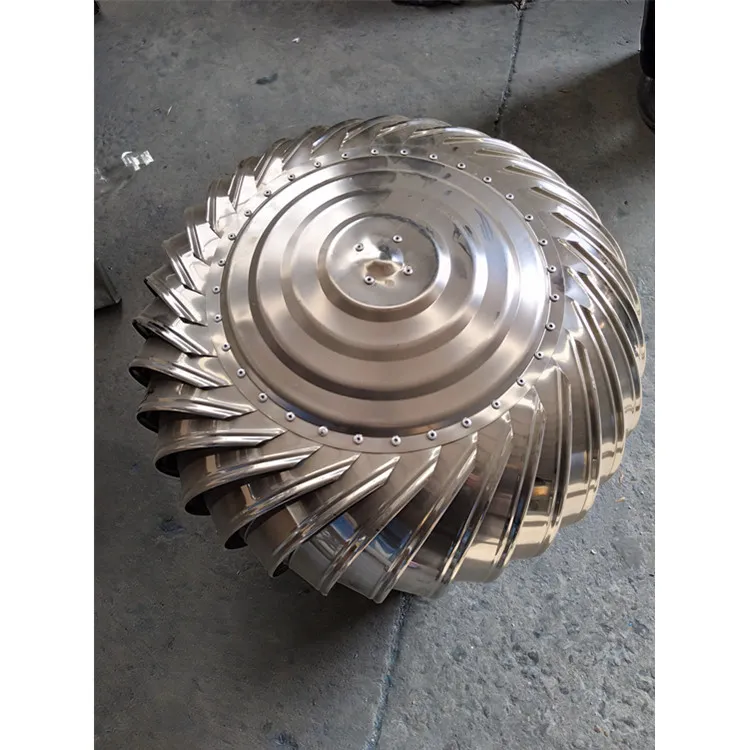

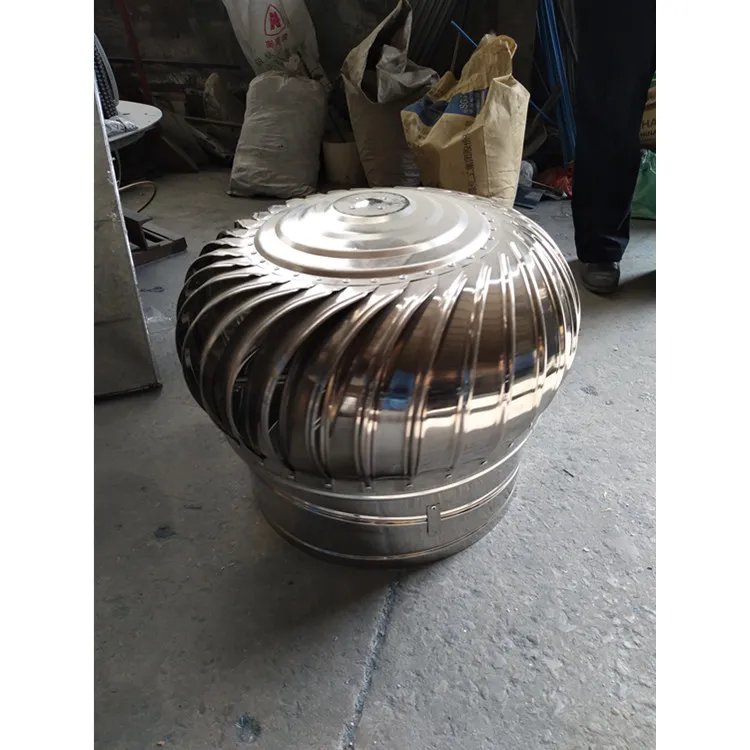

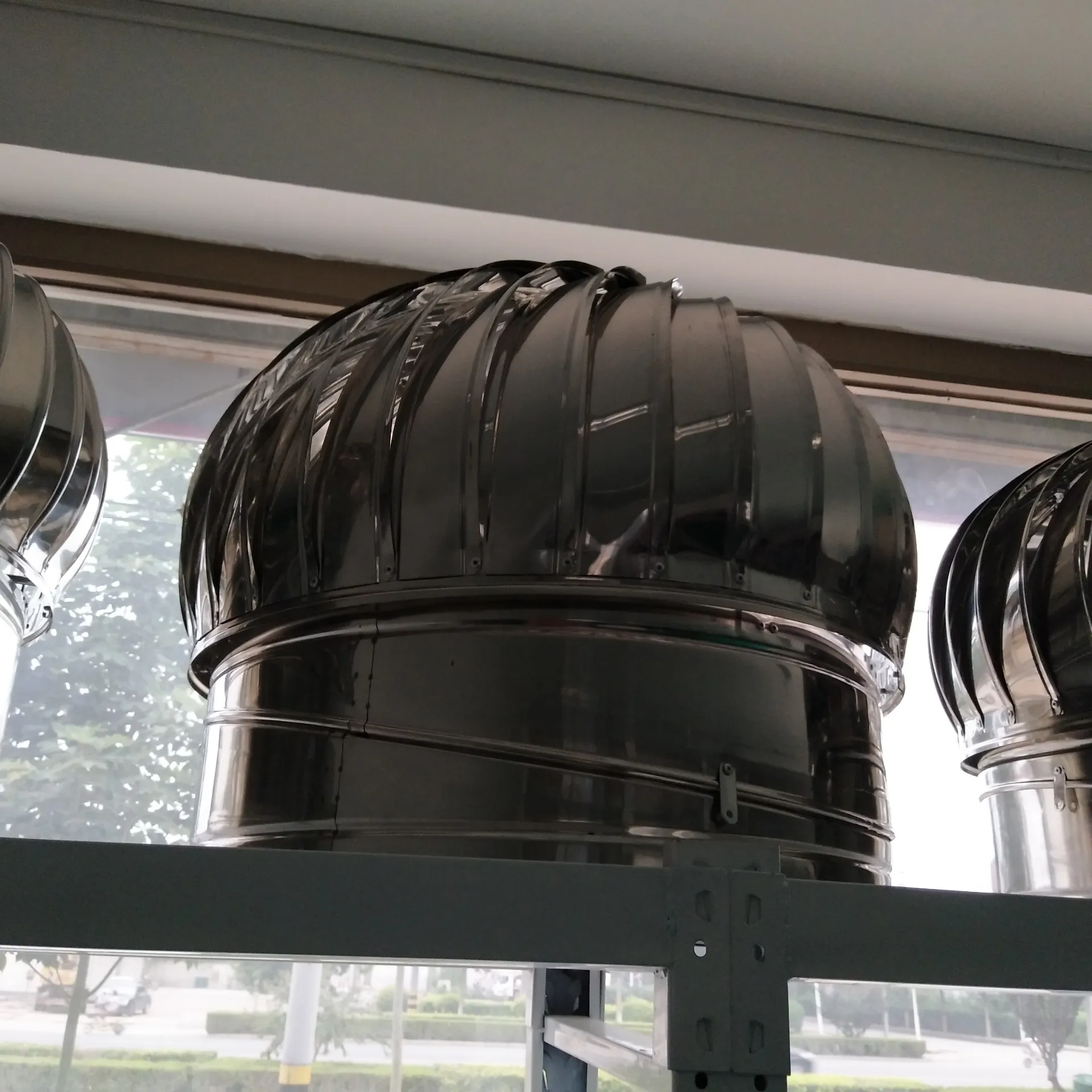

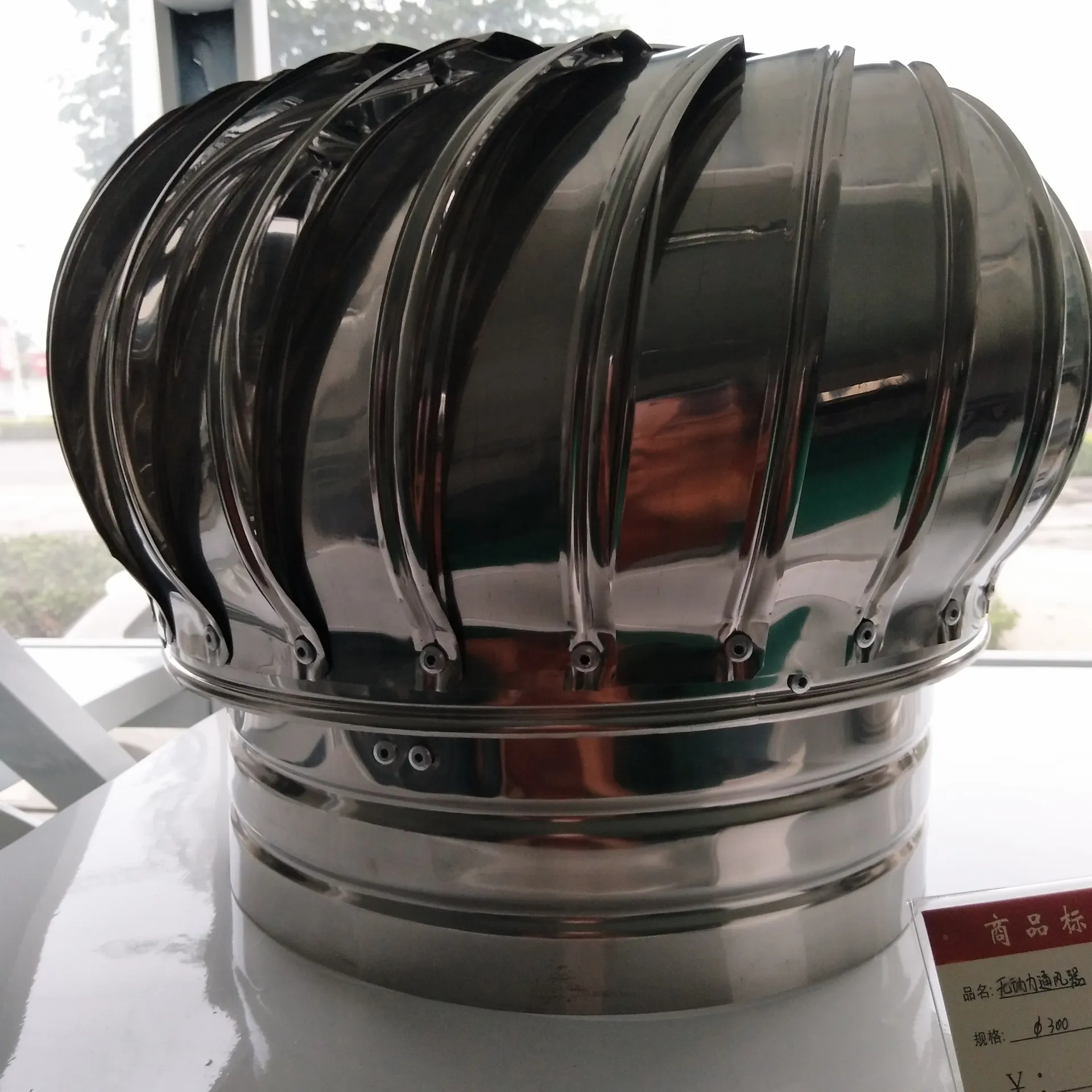

Non-powered roof ventilators are energy-free ventilation solutions that utilize wind energy and thermal buoyancy to continuously exhaust hot air, fumes, and moisture from buildings. Longxuan's turbine ventilators feature 360° omnidirectional operation with wind speeds as low as 0.2 m/s, providing 24/7 ventilation without electricity costs.
2.Core Technology & Design
1.Wind-Driven Turbine Mechanism
Stainless steel ball bearings ensure smooth rotation even in low-wind conditions
Aerodynamic curved blades capture wind from any direction, increasing airflow efficiency by 40% compared to static vents
2.Thermal Stack Effect Enhancement
Double-wall construction creates a chimney effect, boosting hot air exhaust when ΔT ≥5°C
Aluminum/304 SS housing reflects solar radiation to prevent heat buildup
3.Weatherproof Construction
IP54-rated base flashing (standard EPDM rubber, optional lead-free aluminum)
Bird/insect-proof stainless steel mesh (2mm aperture)
3.Technical Specifications
|
Model |
LX-NPV300 |
LX-NPV600 |
LX-NPV900 |
|
Ventilation Capacity |
800 |
2,500 |
5,000 |
|
Diameter |
300 |
600 |
900 |
|
Weight |
5.2 |
12.8 |
22.4 |
|
Wind Load |
150 km/h |
150 km/h |
130 km/h |
|
Temperature Range |
-30°C to +120°C |
|
|
4.Installation Advantages
✔ Universal Mounting: Compatible with metal, concrete, and membrane roofs (slope 5°-45°)
✔ Zero Maintenance: Self-lubricating bearings (10+ year lifespan)
✔ Corrosion Resistance: 316L stainless steel hardware for coastal areas
5.Performance Comparison
|
Feature |
Traditional Louver |
Powered Fan |
Longxuan Turbine |
|
Energy Use |
None |
0.5-2 kW |
None |
|
Continuous Operation |
No |
Yes |
Yes |
|
Noise |
N/A |
60-75 dB |
<35 dB |
|
Lifetime |
5-8 years |
3-5 years |
15+ years |
6.Applications
◼ Industrial: Factories, warehouses, workshops
◼ Agricultural: Poultry farms, greenhouses, grain storage
◼ Commercial: Parking garages, shopping malls, restaurants
◼ Residential: Apartment buildings, attic ventilation
7.Installation Guidelines
Spacing: 1 unit per 50-80 m² of roof area
Height: Minimum 0.5m above parapet for optimal airflow
Complementary Systems: Pair with eave intake vents for cross-ventilation
Warranty: 5 years on turbine assembly, 2 years on flashing
No Power Roof Fan Customer Evaluation
No Power Roof Fan FAQ
-
How does the No Power Roof Fan work?
It operates automatically using natural wind power and indoor-outdoor temperature difference (thermal buoyancy), rotating continuously to achieve ventilation and heat dissipation.
-
Does this fan need electricity or maintenance?
No electricity is needed at all. It has a bearing design with low friction and generally requires only regular simple inspection, almost no maintenance.
-
Can it work on non-windy days?
Yes. Even without wind, indoor heat and air pressure difference will drive it to rotate slowly and maintain basic ventilation.
-
What materials are used for the No Power Roof Fan?
It is mainly made of corrosion-resistant FRP, stainless steel or galvanized material, suitable for outdoor and industrial environments.
