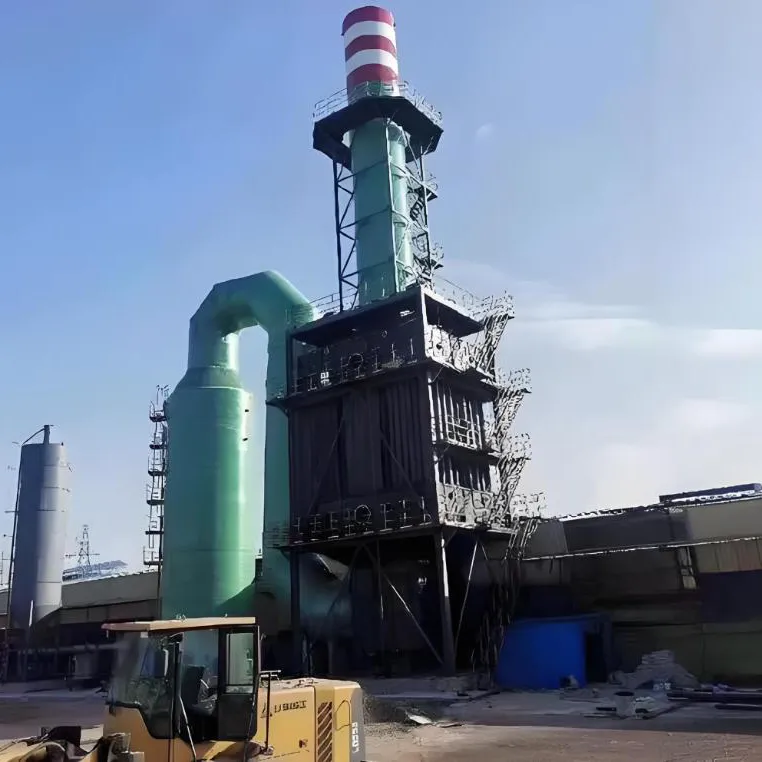

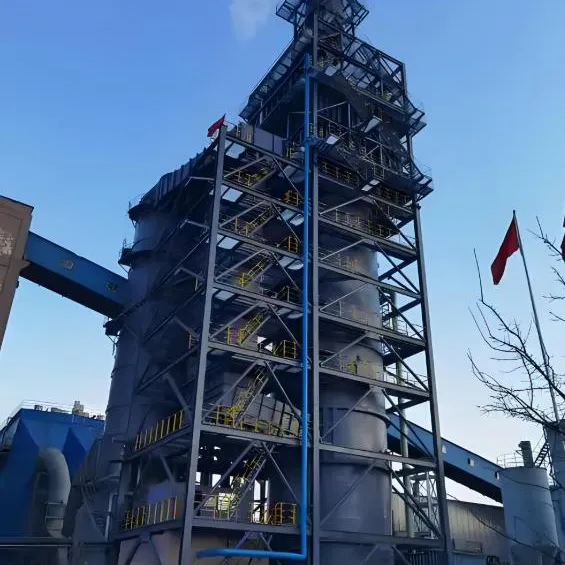

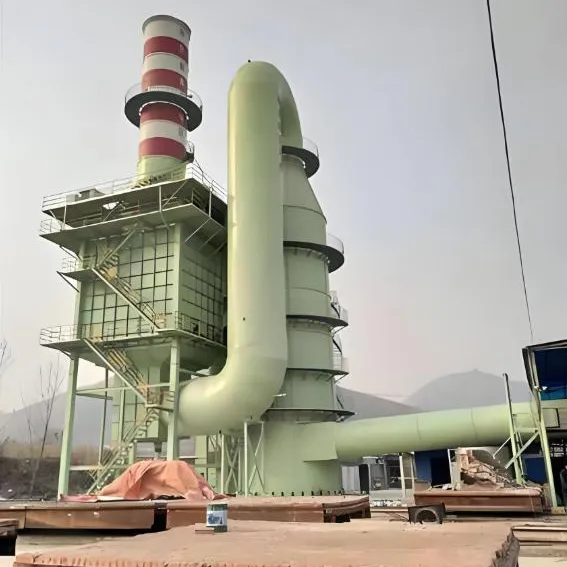

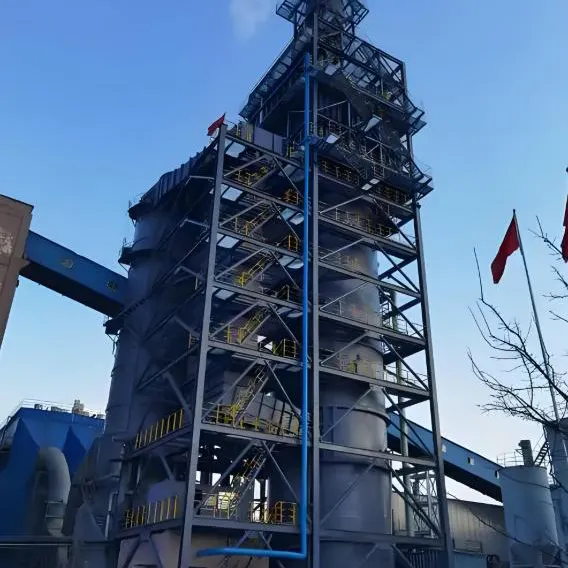

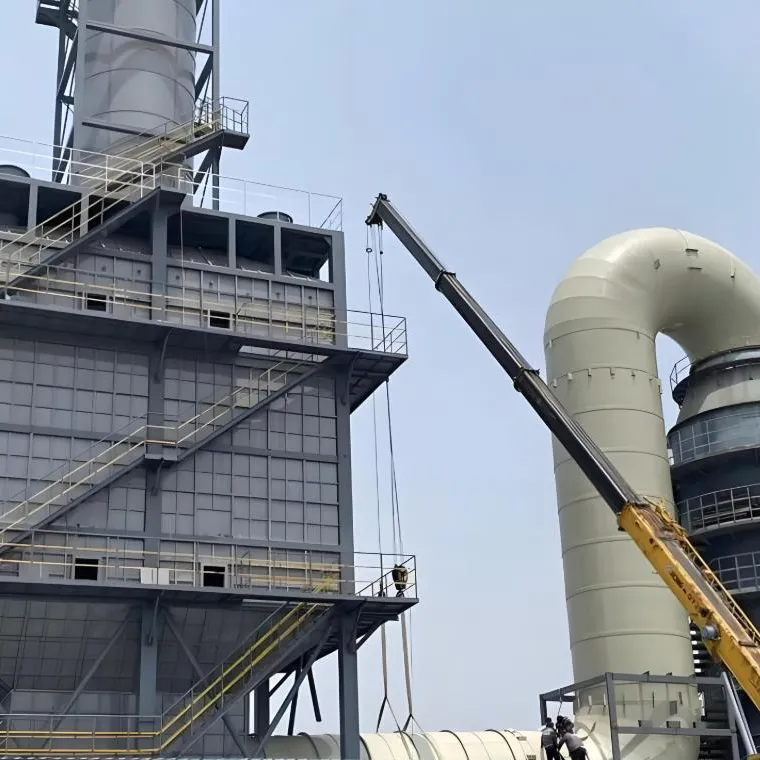

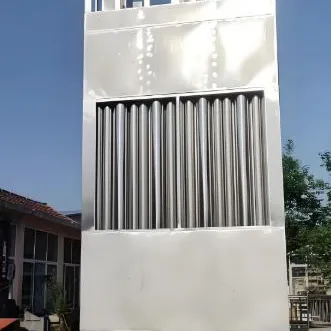

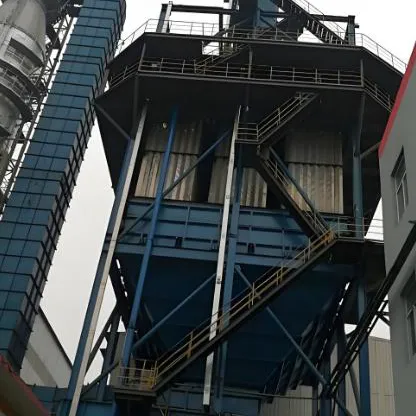

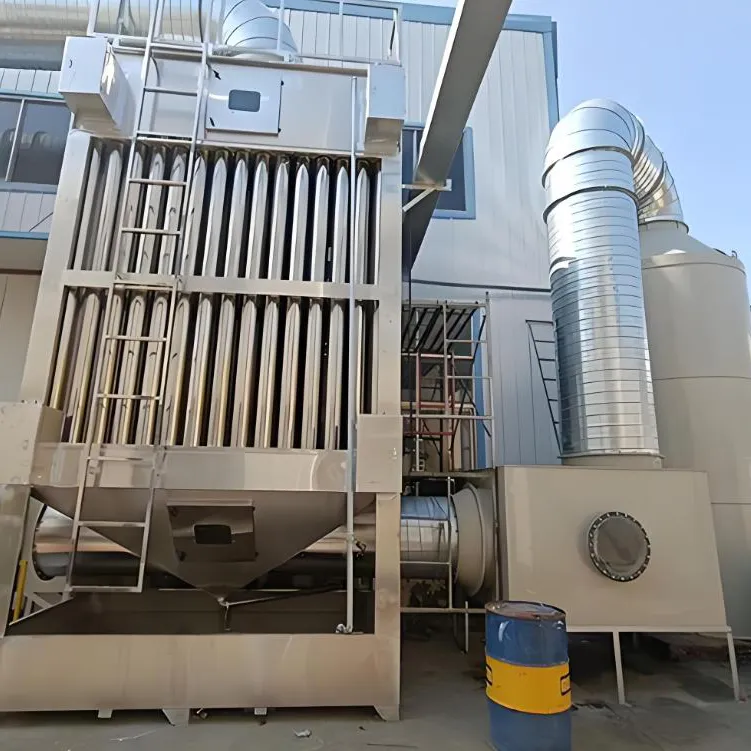

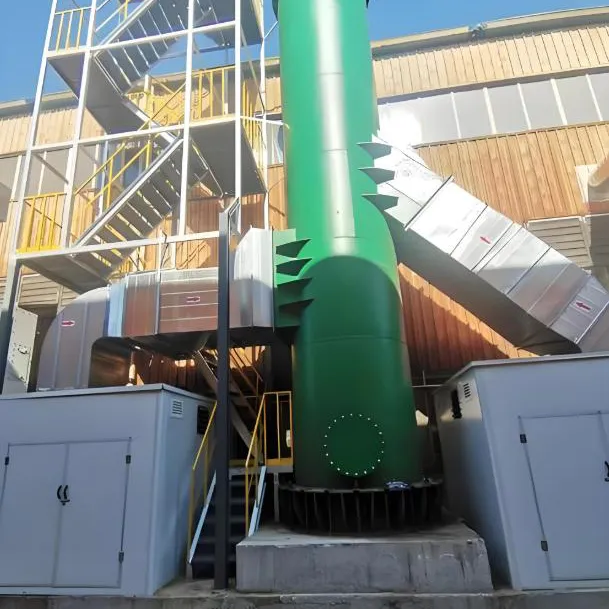

Wet Electrostatic Precipitator
1.Keywords
Wet ESP, High-Efficiency Mist Eliminator, Acid Mist Collector, Submicron Particle Scrubber, Flue Gas Polishing System, Corrosion-Resistant WESP, Conductive Plastic WESP, Industrial VOC Abatement, PM2.5 Control Device, Sulfuric Acid Mist Removal
2.Technical Specifications
1. Core Performance Parameters
|
Parameter |
Specification |
|
Particle Removal |
>99% (PM0.1-10µm) |
|
Pressure Drop |
200-500 Pa |
|
Gas Velocity |
1.0-2.5 m/s |
|
Power Consumption |
0.5-2.0 kW/1000m³/h |
|
Operating Temp. |
Up to 200°C (special designs) |
|
Material Options |
FRP, PP, PVDF, 316L SS, Conductive Plastic |
2. Removal Efficiency by Particle Size
|
Particle Size (µm) |
Removal Efficiency |
|
0.1-1.0 |
95-98% |
|
1.0-2.5 |
98-99% |
|
>2.5 |
>99.5% |
3.Design Features
1. Advanced Electrode System
Discharge Electrodes:
Titanium alloy / 2205 duplex stainless steel
Optimized spike/wire design for high corona current
Collecting Plates:
Conductive plastic (carbon-filled PP) for acid resistance
Smooth surface for easy washing
2. Water Management System
Continuous Flushing:
Nozzle-spray cleaning (demineralized water preferred)
Automatic pH-controlled recirculation
Sludge Handling:
Settling tank with scraper system
3. Smart Control & Monitoring
Voltage Control:
Automatic spark detection & suppression (0-100kV adjustable)
IoT Connectivity:
Remote monitoring of current, pressure drop, and water quality
4.Industry Applications
A. Chemical & Petrochemical
Sulfuric Acid Mist Control: <5mg/Nm³ emission guarantee
Chlor-Alkali Plants: Chlorine mist reduction
B. Metal Processing
Aluminum Smelting: HF & tar removal
Steel Pickling Lines: HNO₃/HF mist control
C. Waste-to-Energy
Dioxin Removal: Combined with activated carbon injection
Flue Gas Polishing: Downstream of semi-dry scrubbers
D. Semiconductor Manufacturing
Ultra-Clean WESP: ISO Class 3 compliant for wafer fabs
5.Certifications & Testing
Performance Verified:
EPA Method 5 & 202 (PM & condensables)
EN 15259 compliance for stack testing
Safety Certifications:
ATEX Directive 2014/34/EU (Zone 1)
IECEx for hazardous areas
Customization Options:
✓ Explosion-proof housing (NEMA 4X)
✓ Hot gas bypass for maintenance
✓ Integrated HEPA filter for final polishing
(Engineering support available for CFD modeling and pilot testing)
6.Contact for
Site-specific collection efficiency calculations
Retrofit feasibility studies
O&M training programs
Wet Electrostatic Precipitator Customer Evaluation
Wet Electrostatic Precipitator FAQ
-
What is the main application of Wet Electrostatic Precipitator (WESP)?
It is mainly used for removing fine dust, acid mist, tar, water mist and other pollutants in industrial flue gas, especially in high-humidity working conditions.
-
What is the dust removal efficiency of WESP?
The purification efficiency can reach more than 99% for fine particles and acid mist, meeting strict environmental emission standards.
-
Does the Wet Electrostatic Precipitator cause secondary dust pollution?
No. It uses water washing for ash removal, so there is no re-entrainment of dust, avoiding secondary pollution.
-
What industries is WESP suitable for?
It is widely used in steel, non-ferrous smelting, chemical industry, garbage incineration, coal-fired power plants and other industrial waste gas treatment.
