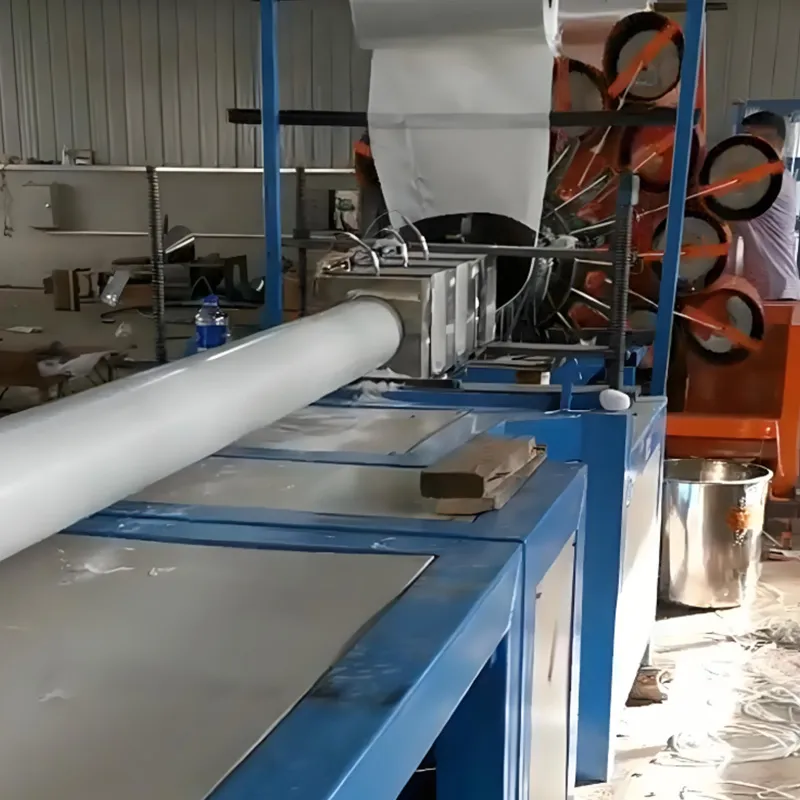

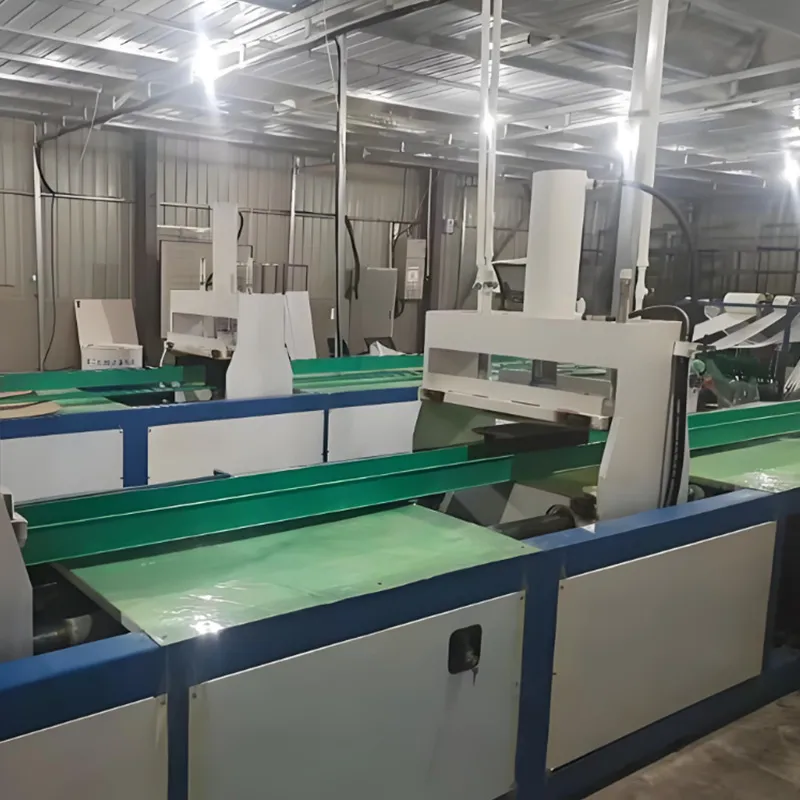

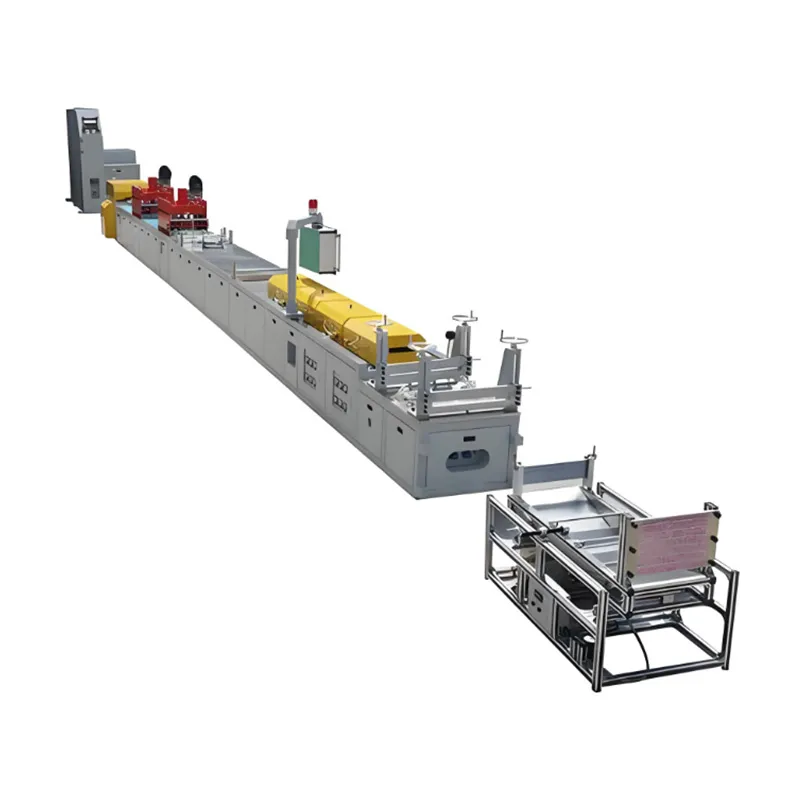

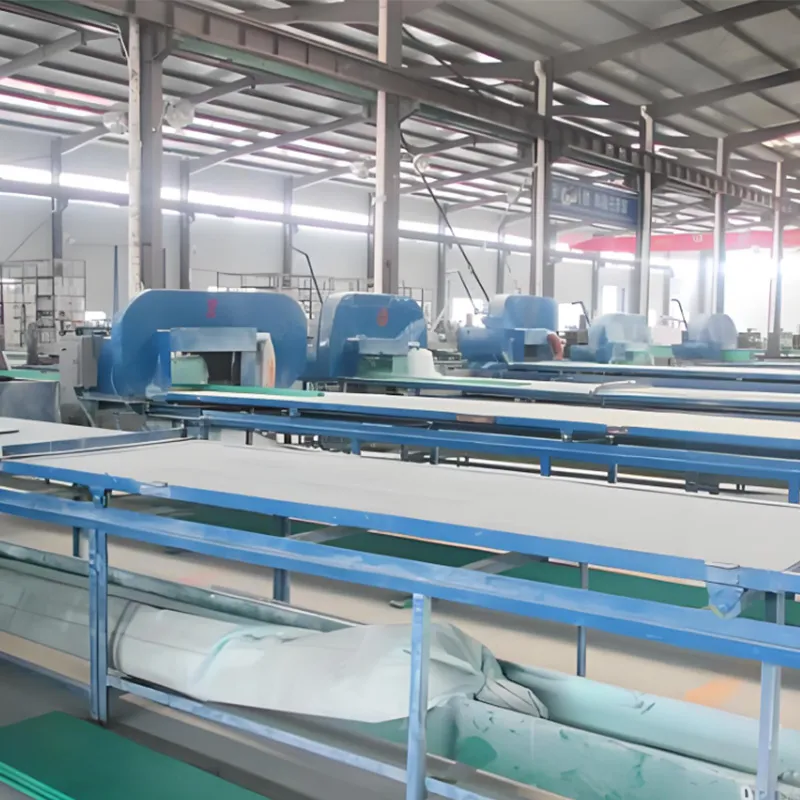

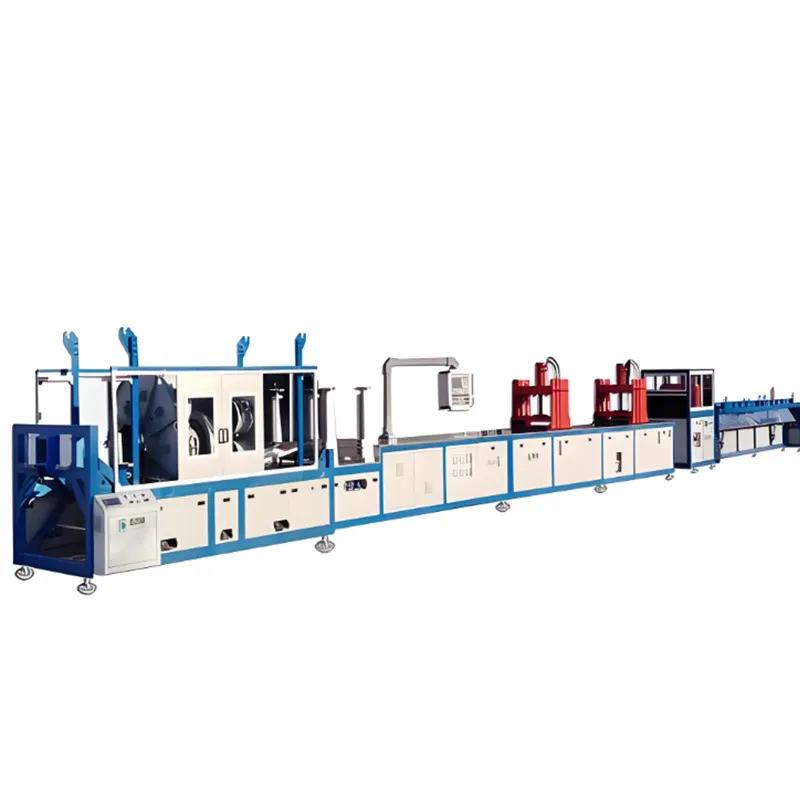

FRP Pultrusion Equipment
Core System Components
1.Fiber Delivery System
Creel capacity: 48-288 positions (customizable)
Electrostatic fiber spreaders for optimal resin penetration
2.Resin Injection Module
Closed-chamber design reduces VOC emissions by 90%
Dual-component metering pumps (accuracy ±0.5%)
3.Heating & Curing System
6-12 zone electric/heating oil temperature control (±1°C)
Profile surface temperature monitoring with IR sensors
4.Pulling Mechanism
Servo-controlled caterpillar pullers (max. 3m/min)
200-ton clamping force with anti-slip teeth design
Technical Specifications
Model | LX-PE600 | LX-PE1200 | LX-PE2000 |
Max. Pull Force | 6 ton | 12 ton | 20 ton |
Profile Width | ≤600mm | ≤1200mm | ≤2000mm |
Thickness | 1-50mm | 1-80mm | 1-100mm |
Power | 45kW | 85kW | 160kW |
Line Speed | 0.2-2m/min | 0.1-1.5m/min | 0.05-1m/min |
Key Process Advantages
✔ Precision Control: PLC system with HMI touchscreen (500+ recipe storage)
✔ Material Flexibility: Compatible with epoxy, vinyl ester, and polyurethane resins
✔ Surface Options: In-line sanding, gel coating, or film application
Producible Profiles
Structural Shapes: I-beams, channels, angles
Electrical Components: Insulator rods, cable trays
Specialty Profiles: Wind turbine blades, bridge decking
Quality Assurance
Real-time Monitoring: Resin viscosity, fiber tension, and cure degree sensors
Post-processing: Automatic cutting (±0.5mm length tolerance)
Testing Equipment: On-line ultrasonic thickness gauge
Certifications: CE, ISO 9001, ASME RT-2
Industry Applications
◼ Construction: FRP rebar, window frames
◼ Transportation: Truck side rails, aircraft components
◼ Energy: Solar panel supports, transformer spacers
Lead Time: 90 days for standard lines, 120-150 days for customized systems
FRP Pultrusion Equipment Customer Evaluation
FRP Pultrusion Equipment FAQ
-
What is FRP pultrusion equipment?
FRP pultrusion equipment is machinery used to produce continuous fiber-reinforced plastic profiles by pulling fibers through resin baths and heated dies to form strong, lightweight composite shapes.
-
What are the advantages of FRP pultrusion?
Advantages include high strength-to-weight ratio, continuous production, uniform quality, corrosion resistance, and low maintenance for the finished profiles.
-
What industries use FRP pultrusion equipment?
Commonly used in construction, electrical insulation, marine, transportation, infrastructure, and chemical industries.
-
What types of profiles can be produced?
The equipment can produce rods, beams, channels, angles, gratings, and custom shapes depending on the mold design.
